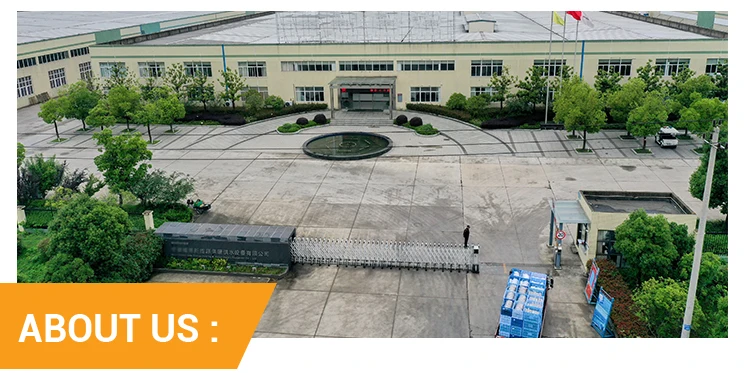

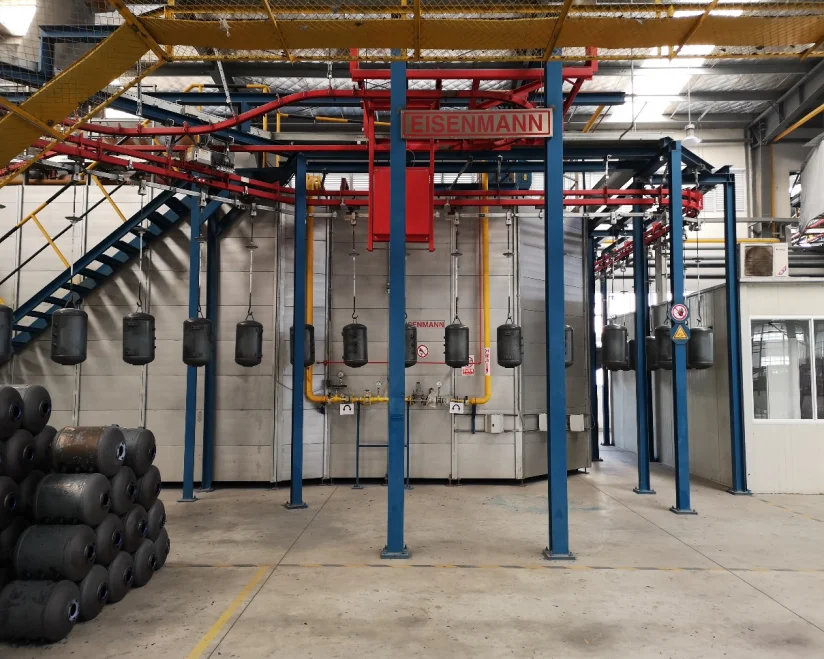

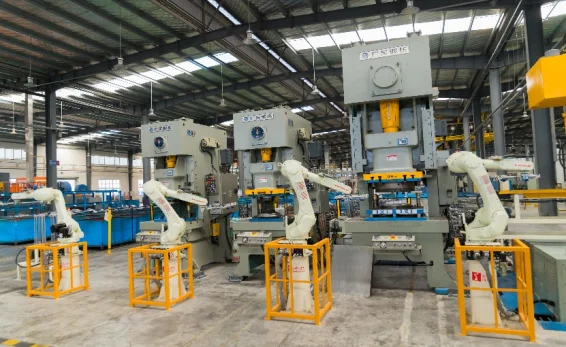

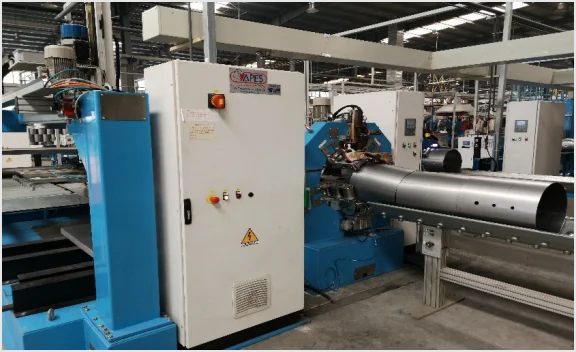

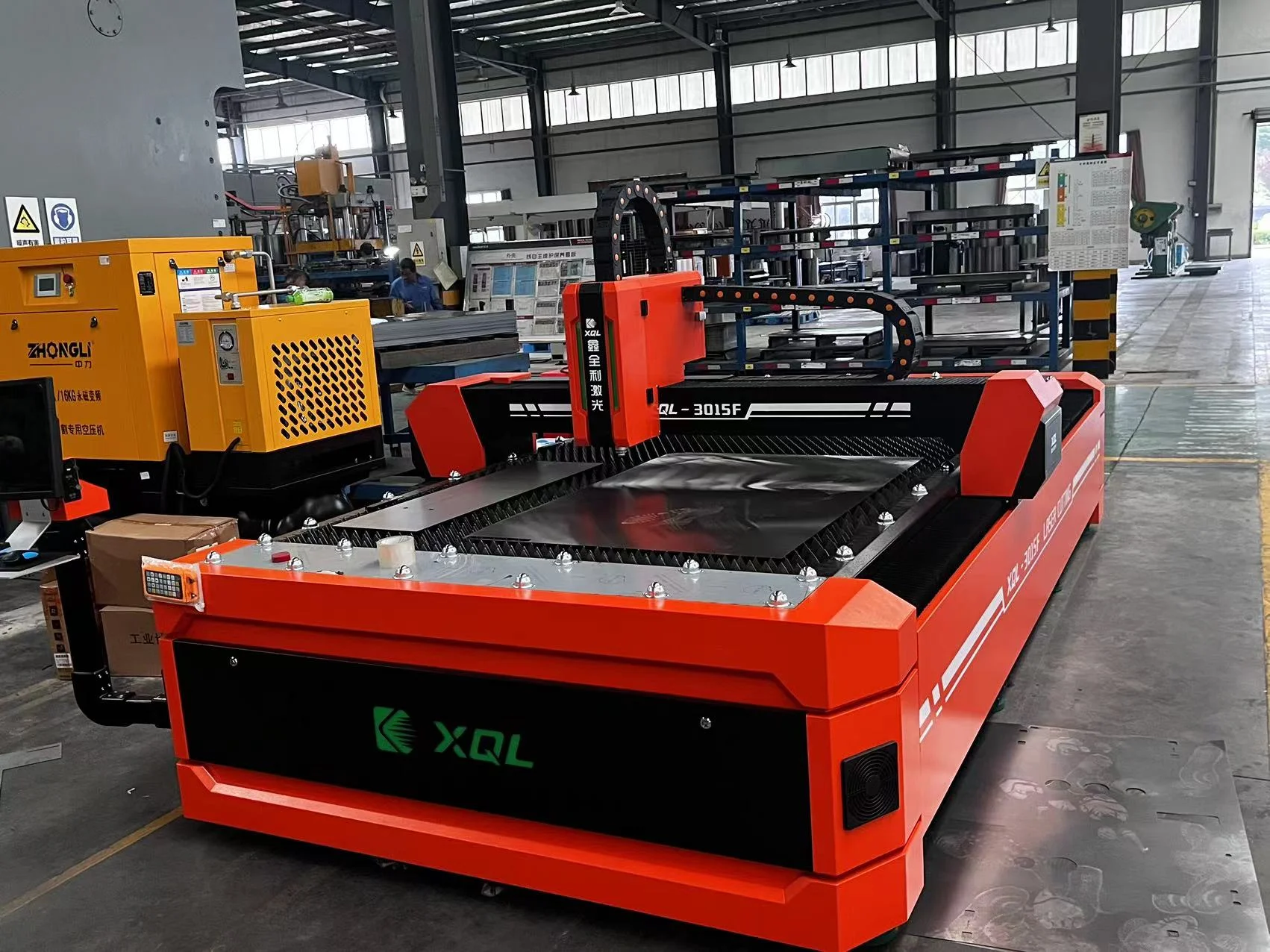

Foshan Hechuang Weiqi Technology Co., Ltd. is the professional company involving in water heater business. The water heater factory is located in Ma'anshan City by the Yangtze River, Anhui Province, eastern China where there is very convenient transportation to Shanghai Port. Aiming to deliver premium-quality water heater products and heating solutions to families worldwide, we strive to become a leading water heater solution provider and manufacturer world wide. With annual production of TWO million units a year and an area of 110,000 square meters we are now the most important water heater manufactures in China. With a total investment of 1.1 billion RMB, our business has been growing very fast in recent years. The company is now the world's largest electrostatic dry powder enamel inner liner production factory, and is the most excellent and largest ODM+ enterprise in the global electric water heater industry.
|

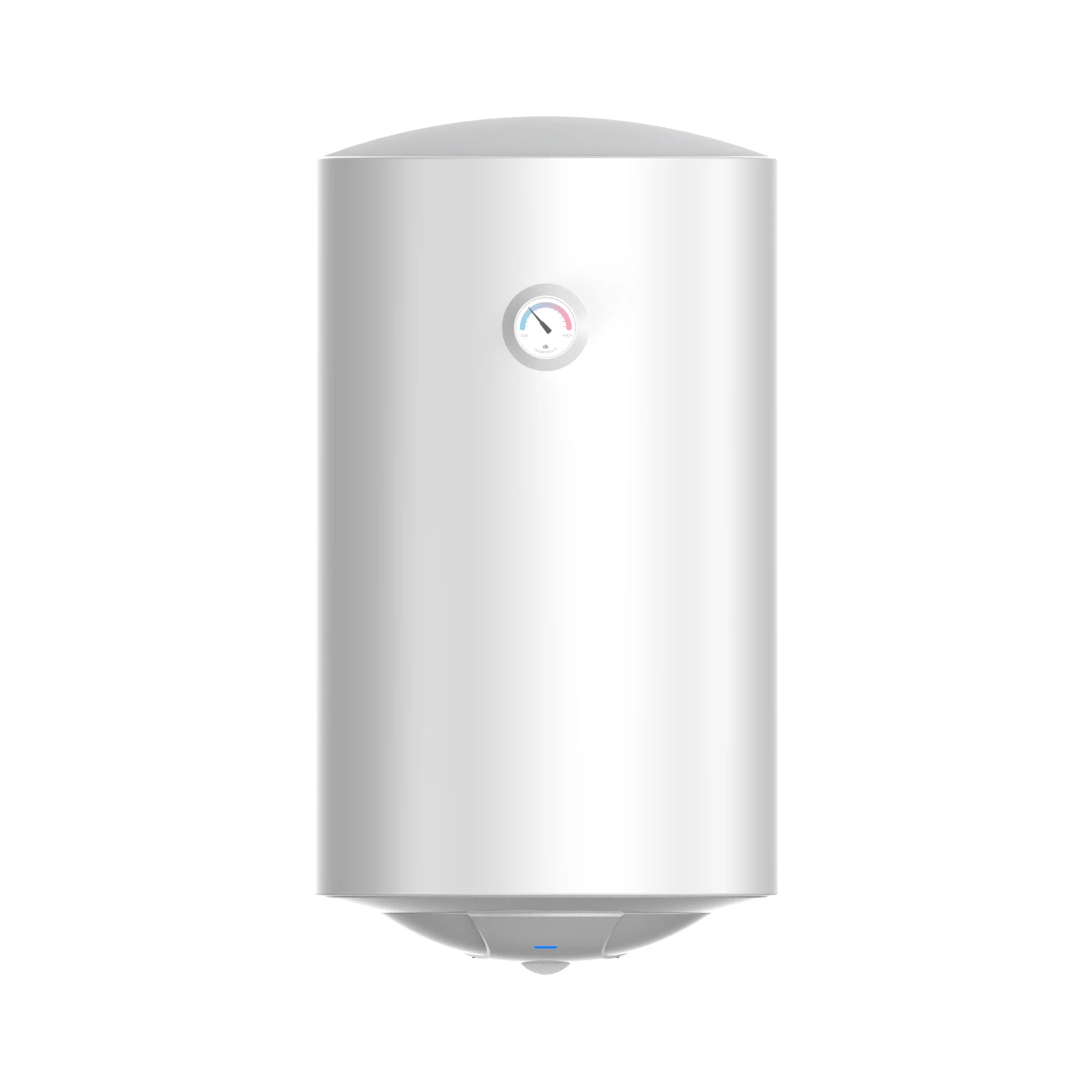

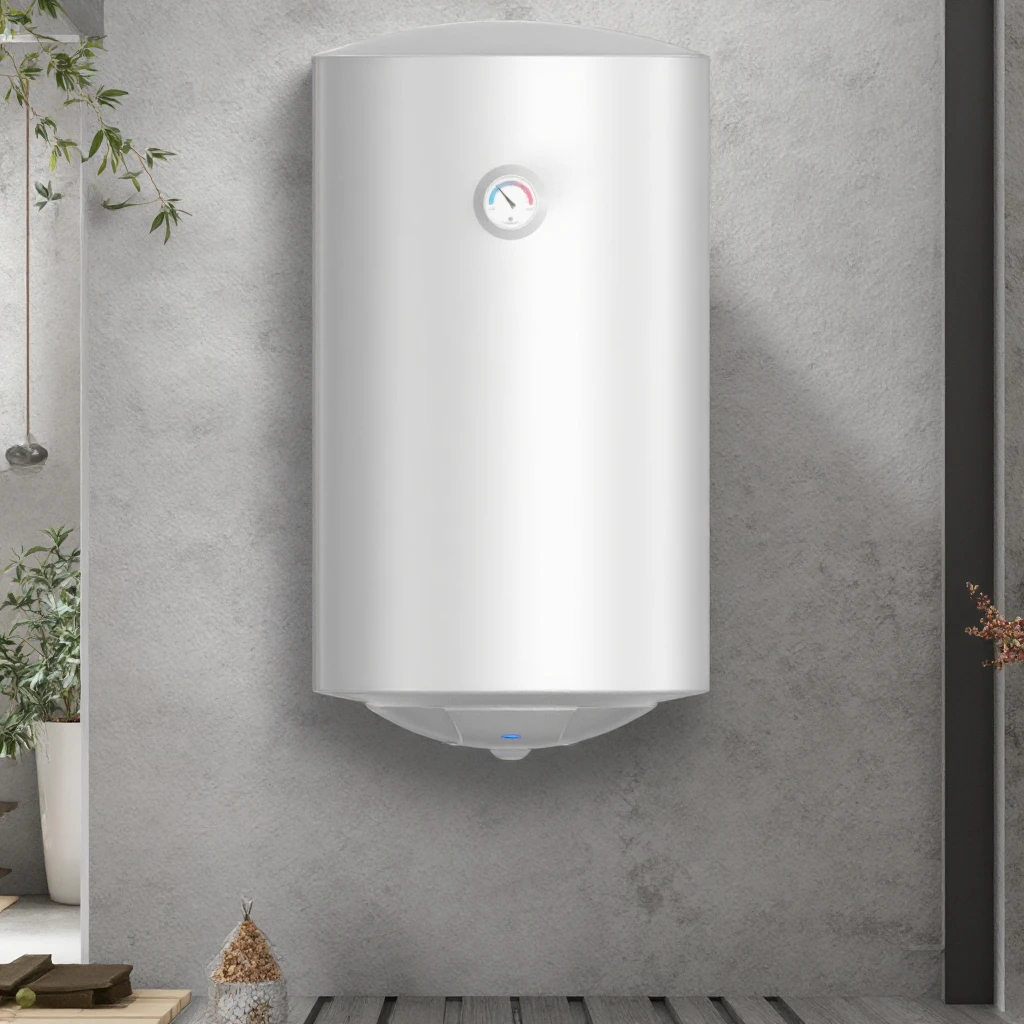

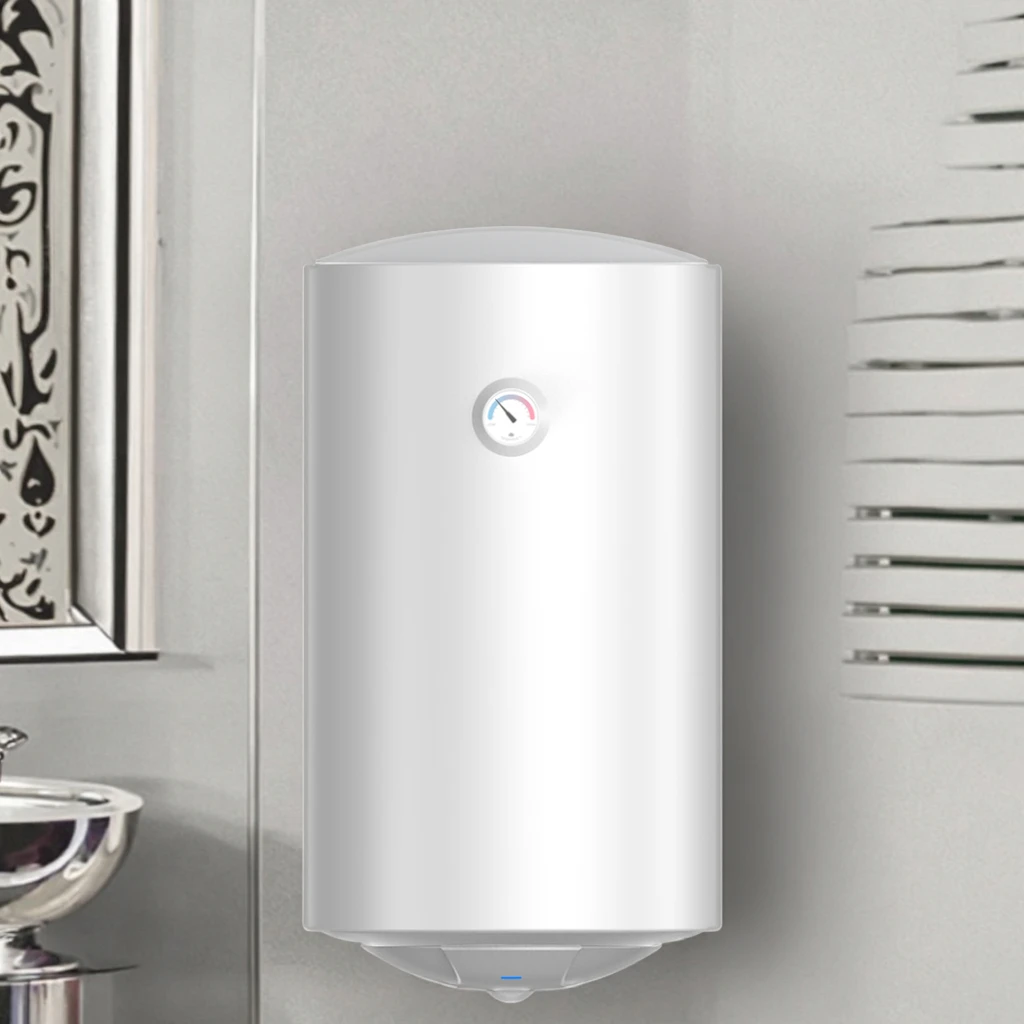

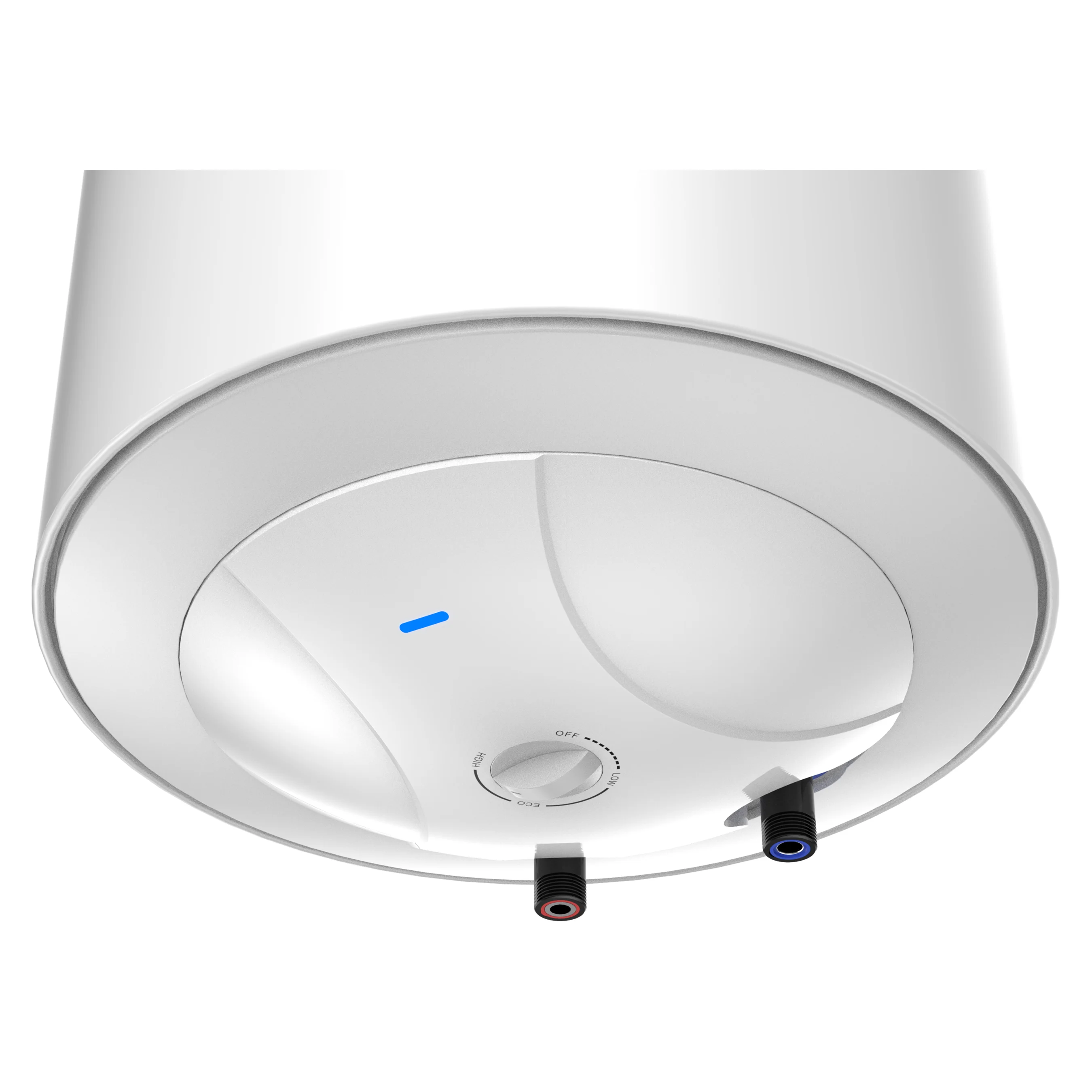

Model Name
|
L2-30 / L2-50 / L2-80A / L2-80B / L2-100
|
||||||||||
|
Standard features
|
Capillary Thermostat
Enamel Tank
One Knob Control
Power Indicator
Enamel Heating Element
Earth Protection
Dry heating Protection
Over Temperature Protection
Vertical Installation Only.
Temperature gauge display
|
||||||||||
|
Optional features
|
Long life magnesium optional
|
||||||||||
|
Declared Capacity,L
|
30 / 50 /80 / 80 / 100
|
50
|
80
|
80
|
100
|
120
|
|||||
|
Actual inner Tank Capacity
|
≥98%
|
||||||||||
|
Rated Power,W
|
1500
|
||||||||||
|
Voltage,V
|
220~240
|
||||||||||
|
Frequency,HZ
|
50/60
|
||||||||||
|
External Dimensions H/W/D,mm
|
Φ340*600 / Φ380*730 / Φ380*1060 / Φ450*805 / Φ450*965
|
||||||||||
|
Net Weight,Kg锛�±5%锛�
|
12.7 / 16.3 / 22 / 21.5 / 26.8
|
||||||||||
|
Gross Weight,Kg锛�±5%锛�
|
14.5 / 18.5 / 25 / 24.7 / 30.5
|
||||||||||
|
Control Panel
|
Mechanical
|
||||||||||
|
Type Of Thermostat
|
Capillary Thermostat
|
||||||||||
|
Temperature Range,鈩�
|
30-75
|
||||||||||
|
Maximum Working Pressure,Mpa
|
0.75
|
||||||||||
|
Water Proof Class
|
IPX4
|
||||||||||
|
Energy efficiency rating
|
C
|
||||||||||
|
Temperature indication
|
N
|
||||||||||
|
Heating Indicator
|
Y
|
||||||||||
|
Power Indicator
|
N
|
||||||||||
|
Over Heat Protection
|
Y
|
||||||||||
|
Max Temperature
|
75
|
||||||||||
|
Antifreeze protection
|
N
|
||||||||||
|
Dry heating element
|
N
|
||||||||||
|
Inner Tank
|
Enamel tank
|
||||||||||
|
Tank Thickness,mm
|
1.5 / 1.5 / 1.5 / 1.8 / 1.8
|
||||||||||
|
Coating Type of inner tank surface
|
Enamel
|
||||||||||
|
Outer Cabinet Material
|
SPCC
|
||||||||||
|
Average Thickness Of Insulation,mm
|
20
|
||||||||||
|
Density of Insulation,Kg/m³
|
33-35
|
||||||||||
|
Size of protective anode, mm
|
φ20*200
|
||||||||||
|
Type of Heating Element
|
SUS316L enamel
|
||||||||||
|
Type of box
|
brown box
|
||||||||||
|
Power Cable length,m
|
1.5m including the length inside control box.
|
||||||||||
|
Type Of Mounting
|
VERTICAL
|
||||||||||
|
Water Connection size
|
G1/2
|
||||||||||
|
Carton size,mm
(Dimensions after packaging)
|
405*385*650 / 445*415*770 / 445*415*1100 / 505*495*855 / 505*495*1015
|
||||||||||
|

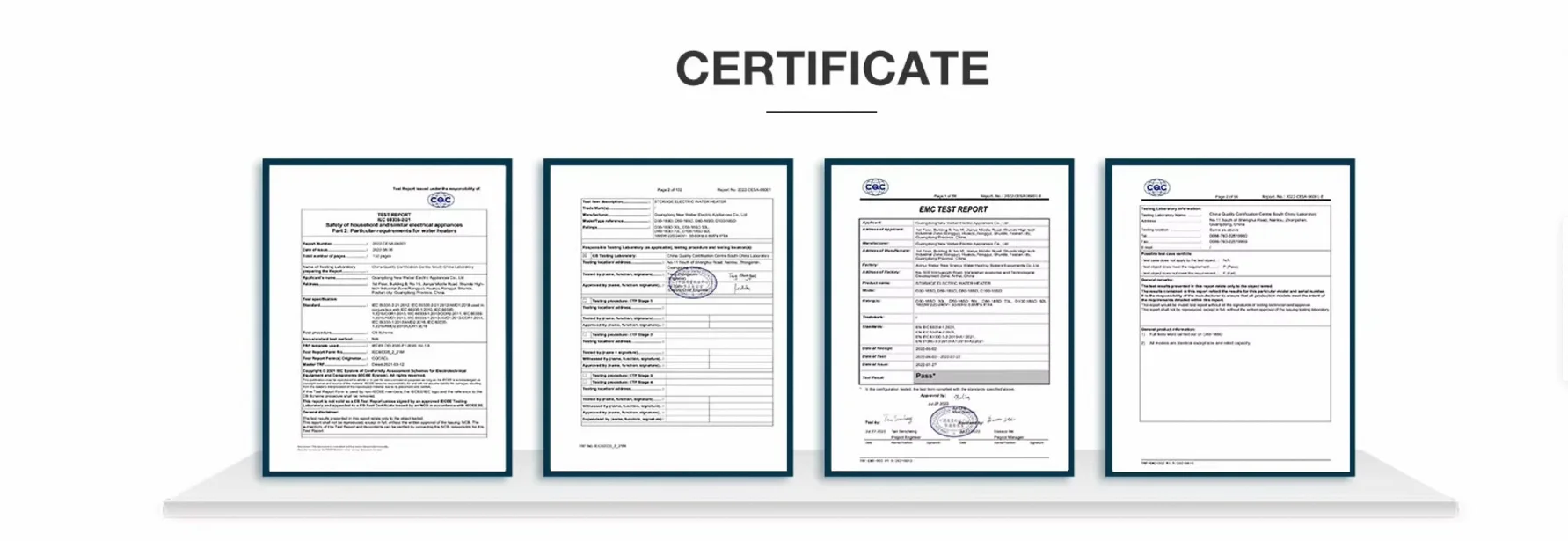

Certification
|
CE,Rohs, WEEE
|
||||||||||
|
20GP
|
312 / 218 / 148 / 137 / 88
|
||||||||||
|
40GP
|
623 / 420 / 299 / 270 / 184
|
||||||||||
|
40HQ
|
732 / 516 / 362 / 333 / 240
|
||||||||||
